Component Location Overview - Airbag Crash Sensors

NOTE:

The crash sensor for the TT Coupe is illustrated.

Courtesy of AUDI OF AMERICA, LLC

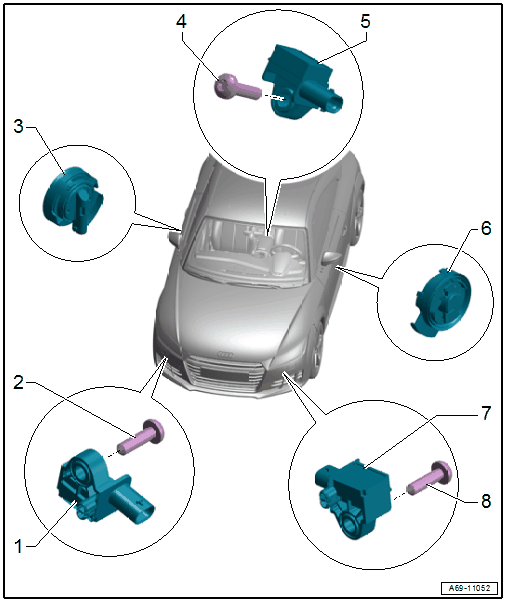

1. Passenger Side Front Airbag Crash Sensor -G284-
   • Component location: on the right of the lock carrier
   • Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
2. Bolt
   • 9 Nm
3. Front Passenger Side Airbag Crash Sensor -G180-
   • Component location: inside the door
   • For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
   • Removing and installing. Refer to Driver Side Airbag Crash Sensor -G179- / Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
4. Bolt
   • 9 Nm
5. Driver Side Rear Side Airbag Crash Sensor -G256-
   • Component location: in the vehicle center at the rear on the center tunnel
   • Removing and installing. Refer to Driver Side Rear Side Airbag Crash Sensor -G256-, REMOVING AND INSTALLING .
6. Driver Side Airbag Crash Sensor -G179-
   • Component location: inside the door
   • For the safety precautions for working with front side airbag crash sensors (pressure sensors). Refer to FRONT SIDE AIRBAG CRASH SENSORS (PRESSURE SENSORS) SAFETY PRECAUTIONS .
   • Removing and installing. Refer to Driver Side Airbag Crash Sensor -G179- / Front Passenger Side Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
7. Driver Front Airbag Crash Sensor -G283-
   • Component location: on the left of the lock carrier
   • Removing and installing. Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING .
8. Bolt
   • 9 Nm
