Wheel Bearing Unit, Removing And Installing, Fwd Vehicles: Removing

Courtesy of AUDI OF AMERICA, LLC

-- Remove the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING, REAR BRAKES .

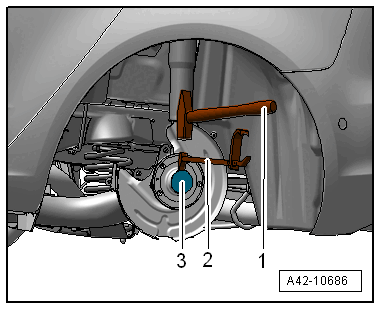

-- Loosen the dust cap -3- from seat by tapping lightly on claw of the : VW637/2  -2- using the hammer -1-

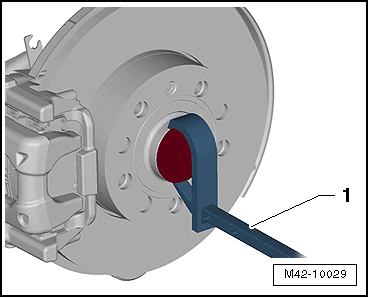

-- Press the dust cap off using the : VW637/2  -1-.

Fig 1: Removing Dust Cap (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- with the : T10162A  .

Fig 2: Identifying Wheel Hub/ Bearing Unit

Courtesy of AUDI OF AMERICA, LLC

-- Remove the wheel bearing unit -2- from the axle stub.

Fig 3: Always Set Wheel Bearing Down On Wheel Hub -2- (Wheel Bearing -1- Facing Up)

Courtesy of AUDI OF AMERICA, LLC
