SUBFRAME, Securing
Special tools and workshop equipment required
- Torque Wrench, 40-200Nm: VAG1332A
- Engine and Gearbox Jack: VAS6931
- Locating Pins: T10096
- Rear Axle Support: T10552
Tools, Preparing
-- Loosen the bolts -arrows-.
-- Adjust the dimension -a-.
- Dimension -a- = 250 mm
-- Tighten the bolts to 10 Nm again.
-- Remove the screw -arrow-.
-- Turn the : T10552/2 -2- so that the profile is perpendicular to the direction of travel.
-- Adjust the dimension -b-.
- FWD vehicles -b- = 270 mm.
- AWD vehicles -b- = 410 mm.
-- Tighten the bolt -arrow- again to 10 Nm.
-- Loosen the left and right lower : T10552/1 -3-.
-- Adjust the dimension -c-.
- Dimension -c- = 47 mm.
-- Turn the left and right threaded sleeve from the : T10552/1 -3- until the dimension -d- is reached.
- Dimension -d- = 190 mm.
-- Place the : T10552 -1- on the : VAS6931 -2-.
-- Retighten the bolt -right arrow- :
- M6 5 Nm
- M8 10 Nm
Procedure
-- Remove the muffler. Refer to MUFFLER, REMOVING AND INSTALLING [CNTC, CYFB] or MUFFLER, REMOVING AND INSTALLING [DAZA, DNWA] .
-- Remove the springs. Refer to SPRING, REMOVING AND INSTALLING .
FWD Vehicles

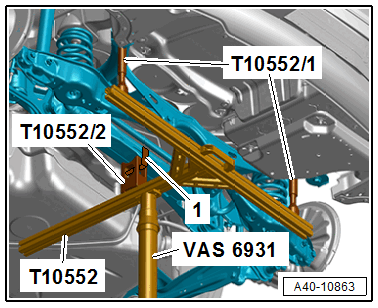

-- Bring the prepared : T10552 with the : VAS6931 to rest on the crossbrace.
- The Mounting Pins : T10552/1 engage in the holes on the back of the subframe.
-- Secure the subframe with the rear axle support tensioning strap.
AWD Vehicles
-- Remove the rear driveshaft tube with the flexible disc and vibration damper from the rear final drive. Refer to the appropriate Service Information .

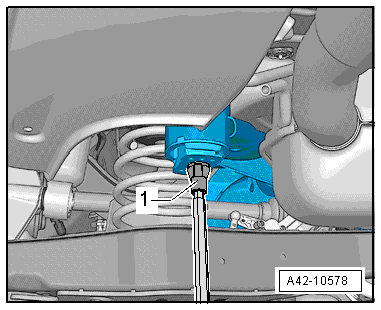

-- Support the driveshaft -3- at the tunnel brace -1- using a wooden block -2-.
-- Slide the rear driveshaft tube as far as possible in the direction of the transmission.

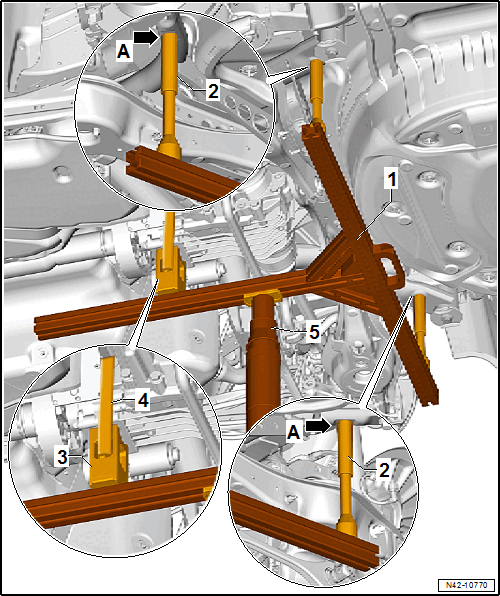

-- Position the : T10552 -1- with the : VAS6931 -5- under the subframe and lift.
-- Insert the : T10552/1 -2- in the holes on the subframe -A arrows-.
-- Secure the : T10552/2 -3- on the subframe using the tensioning strap -4-.
Continuation for All
- To secure the subframe, the : T10096 must be installed on the left and right side at the positions -1- one after the other. (shown on an AWD vehicle).
There is a risk of damaging the threads on the subframe threaded connection to the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.

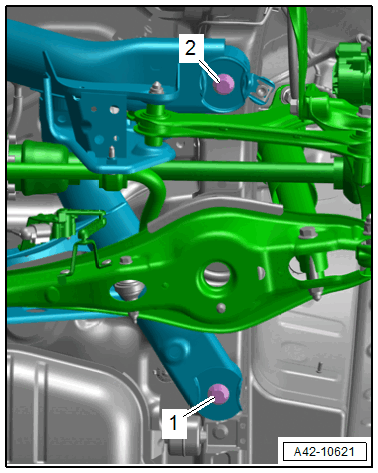

-- Remove a bolt from -1- for the subframe.
-- Install the locating pin -1- from the : T10096 and tighten to a maximum 20 Nm.
-- Repeat procedure for the second front bolt and the rear subframe bolts.
- The subframe position is now secured.
Remove the : T10096 .
Removal is performed in the reverse order. Note the following:
-- Only remove one locating pin diagonally and install a new locating pin in this location and tighten.
There is a risk of damaging the threads on the subframe threaded connection to the body.
- The subframe bolts on the body must not be loosened or tightened with an impact wrench.
- Always install all bolts by hand for the first few turns.
If vehicle will be driving on the streets, all screws and nuts must be tightened properly!
-- Install the springs. Refer to SPRING, REMOVING AND INSTALLING .
-- Install the driveshaft. Refer to the appropriate Service Information .
-- A road test must be performed after completing repairs. If the steering wheel is crooked, the wheels must be aligned. Refer to VEHICLE ALIGNMENT .
Tightening Specifications
- Refer to OVERVIEW - SUBFRAME
- Refer to OVERVIEW - MUFFLER [CNTC, CYFB] or OVERVIEW - MUFFLER [DAZA, DNWA] .
