Overview - SUBFRAME, Fwd Vehicles

WARNING: This page is about a different variant/trim than selected.

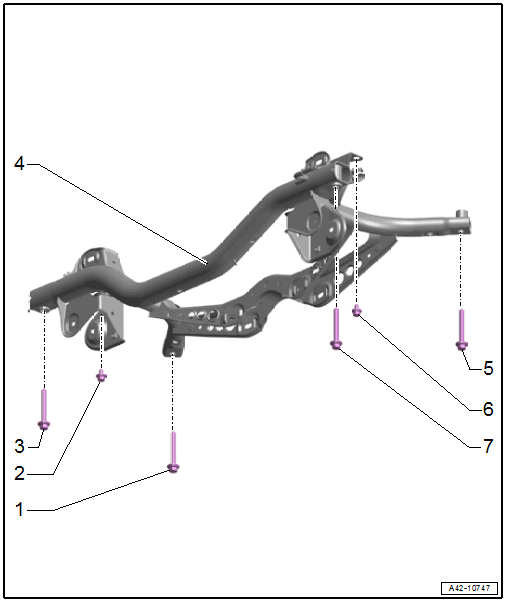

Fig 1: Exploded View Of Subframe, FWD Vehicles
GWWA42-10747Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 70 Nm +180°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
  2. Bolt
    • 50 Nm +45°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
  3. Bolt
    • 70 Nm +180°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
  4. Subframe
  5. Bolt
    • 70 Nm +180°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
  6. Bolt
    • 50 Nm +45°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
  7. Bolt
    • 70 Nm +180°
    • Replace after removing
      CAUTION:

      There is a risk of damaging the threads on the subframe threaded connection to the body.

      • The subframe bolts on the body must not be loosened or tightened with an impact wrench.
      • Always install all bolts by hand for the first few turns.
