Overview - SUBFRAME, AWD Vehicles

WARNING: This page is about a different variant/trim than selected.

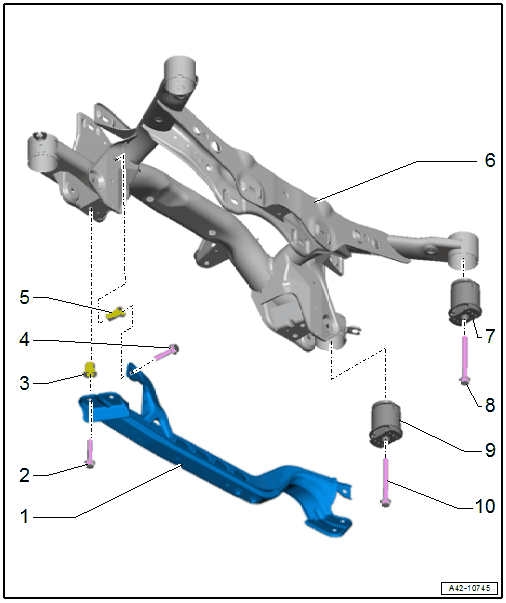

Fig 1: Exploded View Of Subframe, AWD Vehicles

Courtesy of AUDI OF AMERICA, LLC

Crossbrace
Bolt
- 40 Nm
Pop Rivet Nut
Bolt
- 40 Nm
Pop Rivet Nut
Subframe
- Subframe with attachments, removing and installing. Refer to REAR AXLE, REMOVING AND INSTALLING, AWD VEHICLES .
Rear Bonded Rubber Bushing
- Only for Audi TT Coupe
- Replacing. Refer to FRONT BONDED RUBBER BUSHING ON SUBFRAME, REPLACING, AWD VEHICLES .
Bolt
- 70 Nm +180°
- Replace after removing
  CAUTION:
  There is a risk of damaging the threads on the subframe threaded connection to the body.
  - The subframe bolts on the body must not be loosened or tightened with an impact wrench.
  - Always install all bolts by hand for the first few turns.
Front Bonded Rubber Bushing
- Only for Audi TT Coupe
- Replacing. Refer to FRONT BONDED RUBBER BUSHING ON SUBFRAME, REPLACING, AWD VEHICLES .
Bolt
- 70 Nm +180°
- Replace after removing
- Only for Audi TT Coupe
  CAUTION:
  There is a risk of damaging the threads on the subframe threaded connection to the body.
  - The subframe bolts on the body must not be loosened or tightened with an impact wrench.
  - Always install all bolts by hand for the first few turns.
