Overview - Steering Wheel

WARNING: This page is about a different variant/trim than selected.

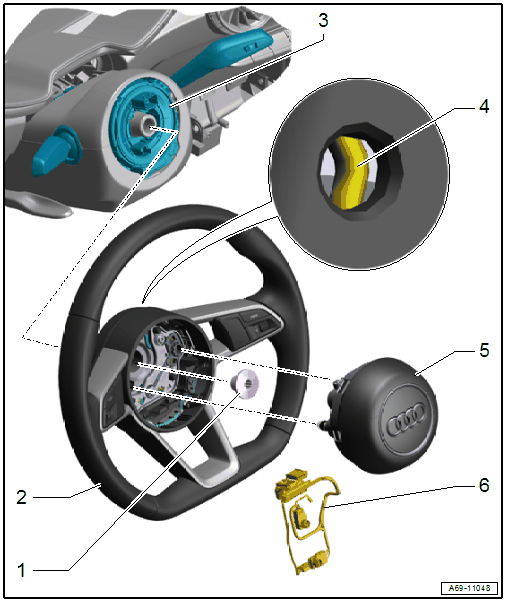

Fig 1: Exploded View Of Steering Wheel

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 30 Nm +90°
- Replace after removing
Steering Wheel
- There are different versions. Refer to the Parts Information.
- Removing and installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
Steering Column Electronics Control Module -J527-
- With Airbag Spiral Spring/Return Spring with Slip Ring -F138-
- Removing and installing. Refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
Locking Bracket
- Use a T10 TORX^® screwdriver, approximately 80 mm long
Driver Side Airbag
- With Driver Airbag Igniter -N95- and Driver Airbag Igniter 2 -N250-
  WARNING:
  Follow the safety precautions when working on airbags. Refer to SAFETY PRECAUTIONS FOR PYROTECHNIC COMPONENTS .
- Removing and installing. Refer to OVERVIEW - DRIVER SIDE AIRBAG .
Wiring Harness
- For Driver Airbag Igniter -N95-
