Tie Rod, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the boot. Refer to BOOT, REMOVING AND INSTALLING .
-- Turn the steering as follows:
- For the left tie rod, turn the steering to the right until it stops
- For the right tie rod, turn the steering to the left until it stops

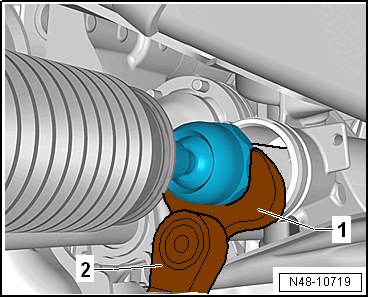

-- Remove tie rod.
- : VAG1923
- : VAG1332
CAUTION:
Risk of destroying the steering gear with entering moisture and dirt with a faulty boot.
- Check the splines on the steering rack for a visible lubricating film.
- If the film of grease is missing, replace the steering gear.
