Steering Gear, Servicing

WARNING: This page is about a different variant/trim than selected.

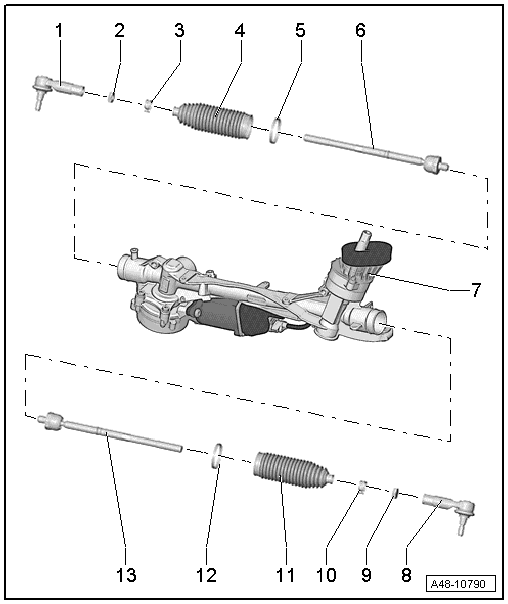

Fig 1: Exploded View Of Steering Gear with Tie Rods
GWWA48-10790Courtesy of AUDI OF AMERICA, LLC
  1. Right Tie Rod End
    • Check dust caps for damage and correct seating
  2. Nut
    • 70 Nm
    • When loosening and tightening, counterhold at the tie rod end
  3. Spring Clamp
  4. Boot
    • Check for damage
    • Must not be twisted after toe is adjusted
    • Do not crumple the boot
    • Do not bring into contact with hard or sharp objects.
    • Grease the sealing locations with Steering Gear Grease: G 052 168 A1
    • Removing and Installing. Refer to BOOT, REMOVING AND INSTALLING .
  5. Clamp
    • Replace after removing
    • Install new clamp using Locking Pliers: VAS6199
  6. Tie Rod
  7. Steering Gear Housing
  8. Left Tie Rod End
    • Check the dust caps for damage and correct seating
  9. Nut
    • 70 Nm
    • When loosening and tightening, counterhold at the tie rod end
  10. Spring Clamp
  11. Boot
    • Check for damage
    • Must not be twisted after toe is adjusted
    • Do not crumple the boot
    • Do not bring into contact with hard or sharp objects.
    • Grease the sealing locations with Steering Gear Grease: G 052 168 A1
    • Removing and Installing. Refer to BOOT, REMOVING AND INSTALLING .
  12. Clamp
    • Replace after removing
    • Install new clamp using Locking Pliers: VAS6199
  13. Tie Rod
