Steering Column, Checking For Damage

WARNING: This page is about a different variant/trim than selected.

Visual Check

-- Check whether parts of steering column indicate damage.

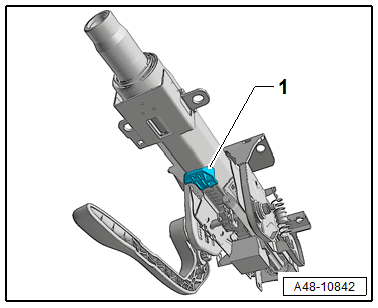

-- Check the steering column end stop -1- for secure fit and damage.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

If the steering column end stop is loose, damaged or missing, the steering column must be removed.

Function Test

-- Check whether steering column can be turned without catching or difficulty of movement.

-- Check if the steering column can be adjusted with respect to length and height.
