Suspension Strut, Servicing: Installing
WARNING: This page is about a different variant/trim than selected.
-- Place coil spring with : VAG1752/1 on lower spring support.

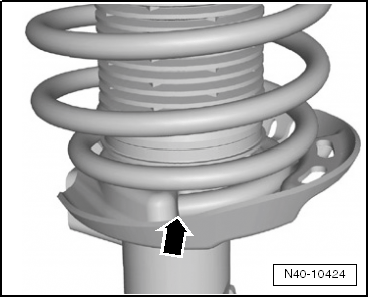

- The end of the spring coil must rest against the stop -arrow-.
-- Tighten the new nut on the piston rod. Refer to OVERVIEW - SUSPENSION STRUT AND UPPER CONTROL ARM .
-- Relieve the tension on the : VAG1752/1 and remove it from the coil spring.
-- Install the suspension strut. Refer to SUSPENSION STRUT, REMOVING AND INSTALLING .
