Stabilizer Bar, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

-- Lower the subframe. Refer to SUBFRAME, LOWERING .

NOTE:

Ignore item -1-.

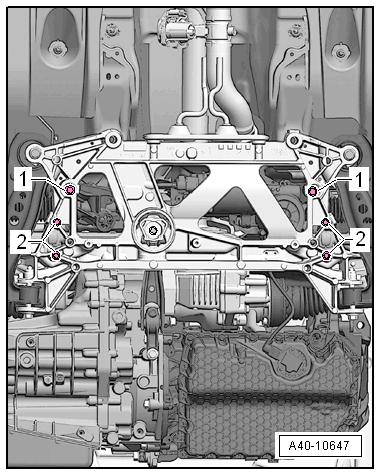

-- Remove the bolts -2- from the stabilizer bar.

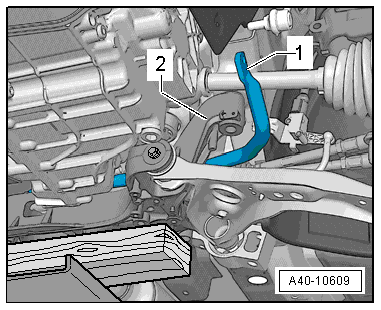

-- Lift up the stabilizer bar -1- from the subframe and remove forward over the bracket -2-.

Courtesy of AUDI OF AMERICA, LLC
