Drive Axle Heat Shield, Removing And Installing

WARNING: This page is about a different variant/trim than selected.

Front Wheel Drive

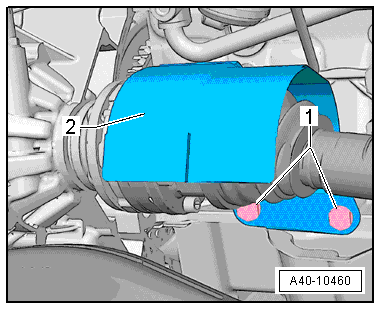

Fig 1: Locating Drive Axle Heat Shield
GWWA40-10460Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Bolts -1- 25 Nm

AWD:

Fig 2: AWD:
GWWA34-11312Courtesy of AUDI OF AMERICA, LLC
Component Tightening Specification
Nuts -arrows-
  • Pre-tightening: 10 Nm
  • Final tightening specification: 20 Nm
