Outer Window Shaft Strip, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

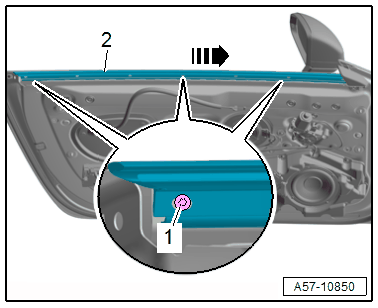

-- Remove the bolts -1- (quantity 7).
-- Loosen the window shaft strip -2- from the door shell and push it forward -arrow-.
- At the same time the window shaft strip guide is guided out of the mount in the area of the A-pillar.
-- Remove the window shaft strip.
