Mounting Bracket, Removing And Installing: Notes
WARNING: This page is about a different variant/trim than selected.
Removing
-- Move the door window into the "closed" position.
-- Remove the door handle. Refer to DOOR HANDLE, REMOVING AND INSTALLING .
-- Remove the door inner cover. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .

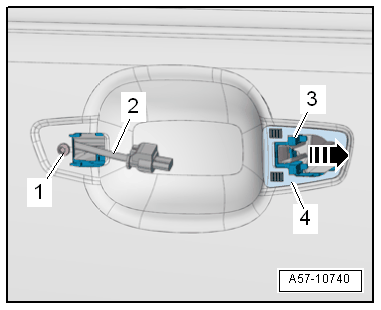

-- If equipped, free up the wire -2- from the mounting bracket -3-.
-- Remove the rear seal -4-.
-- Remove the bolt -1-.
-- Slightly push the mounting bracket from the inner side of the door in the direction of -arrow- and remove.

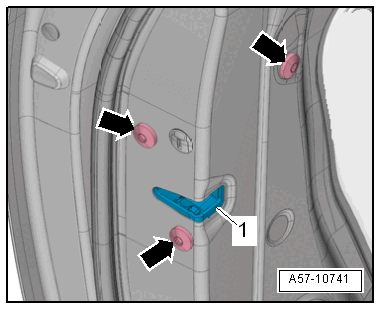

-- Remove the bolts -arrows-.
-- Disconnect the connector and free up the wiring harness.
CAUTION:
Risk of damaging the operating cable by deforming it.
- Never sharply bend or kink the operating cable.
-- Push the mounting bracket and door lock -1- downward and remove them from the door.
