Lock Cylinder Cap, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the lock cylinder. Refer to LOCK CYLINDER, REMOVING AND INSTALLING .

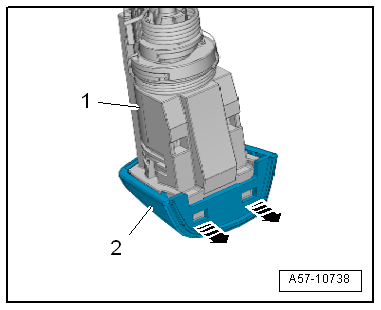

-- Release the catches in direction of -arrows- and remove the cap -2- from the lock cylinder -1- using an awl if necessary.
