Inner Window Shaft Strip, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the front door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
-- Remove the A-pillar trim. Refer to A-PILLAR TRIM, REMOVING AND INSTALLING .

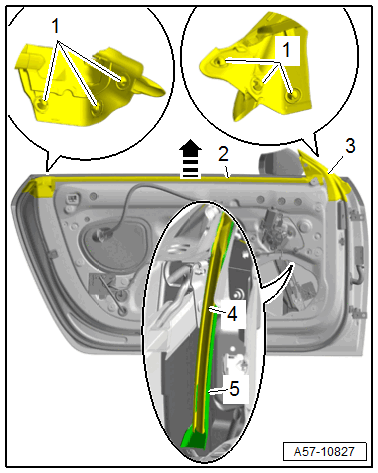

-- Remove the retaining studs -1- on the inner window shaft strip sealing piece from the inner door panel.
-- Remove the inner window shaft strip -2- upward in direction of -arrow-.
-- Remove the A-pillar seal -3- upward from the door shell. While doing so, the window guide strip -4- is removed from the guide rail -5- for the door window.
