Inner Window Shaft Strip, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:
-- Slide the front A-pillar seal -2- onto the door shell -1-. While doing so, the tip -3- must be correctly installed.
-- Press the retaining studs on completely.

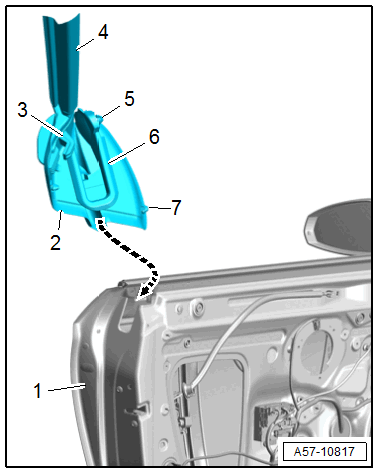

-- Attach the sealing piece -2- onto the door -1- by engaging the guides -3 and 6- in the mounts on the door shell -arrow- and pressing the retainers -5 and 7- on completely.
-- Press on the window shaft strip -4-.
-- Slide the window guide strip into the door window guide rail.
