Housing, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

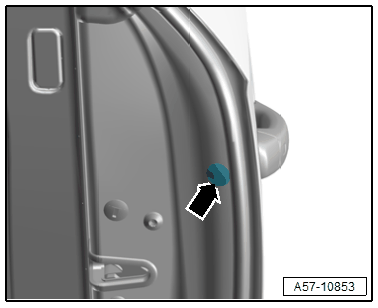

-- Remove the cap -arrow-.

GWWA57-10853Courtesy of AUDI OF AMERICA, LLC

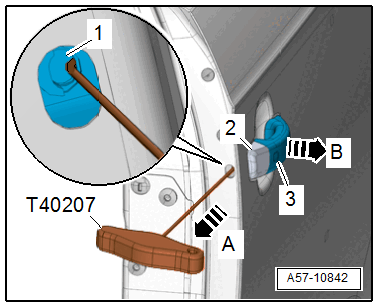

-- Pull the bracket -1- outward using the :T40207  in direction of -arrow A-.

GWWA57-10842Courtesy of AUDI OF AMERICA, LLC

-- Pull the door handle -3- slightly outward in direction of -arrow B- and remove the housing -2- from the mounting bracket.
