Engine Hood Contact Switch -F266-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the latch. Refer to LATCH, REMOVING AND INSTALLING .

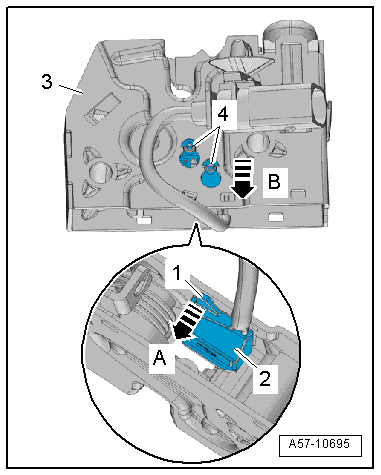

-- Lift the retaining tab -1- in direction of -arrow A-.

GWWA57-10695Courtesy of AUDI OF AMERICA, LLC

-- Disengage the contact switch -2- from the latch -3- in direction of -arrow B- and remove.
