Roof Frame Cover, Removing And Installing: Installing

Install in reverse order of removal and note the following:

• The vehicle and the cover must be at room temperature.
• The adhesive surfaces must be free of dirt and grease.

-- Remove the adhesive residue from the body.

-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04  and let dry.

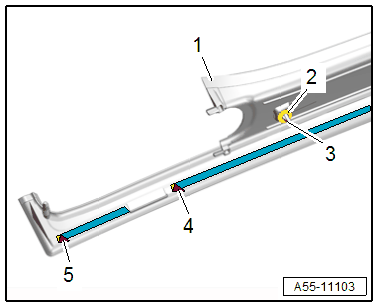

-- Check the foam seal -2- and the clip -3- for damage.

Courtesy of AUDI OF AMERICA, LLC

• The foam seal -2- must be seated in the clip -3-.

-- Close the ends -4 and 5- of the protective film 90° on the outside on the roof frame cover.

-- Position the roof frame cover -1- and press the clips on until they engage audibly.

-- Slowly remove the protective film from the adhesive tape.

-- Push on the roof frame cover along the entire length using the :3356  .

• Vehicle resting time is at least 30 minutes at room temperature.
