Rear Lid, Removing And Installing, Roadster: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the emergency release cable on the rear lid and free it up. Refer to Emergency release cable in the vehicle interior, removing and installing: .
-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

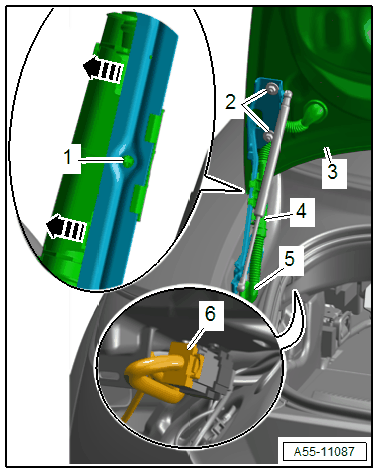

-- Remove the grommet -5-.
-- Disconnect the connector -6- and guide out the wiring harness at the opening in the body.
-- Remove the expanding rivet -1-.
-- Release the catches in direction of -arrows- and remove the cable holder -4- on the hinge.
-- Remove the nuts -2-.
-- Remove the rear lid -3-.
