Rear Lid Seal, Removing And Installing, Coupe: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

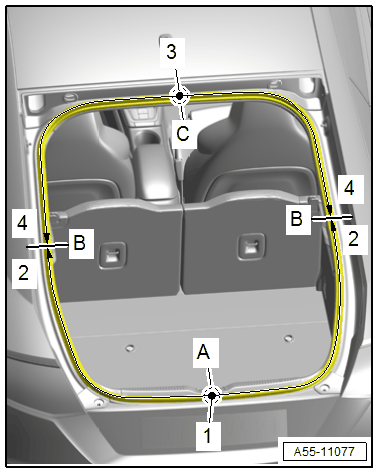

-- Install the rear lid seal on the body flange in the sequence: -1 to 4-.
-- Align the seal with the butt joint -A- to the striker and attach.
-- Attach the left and right seal upward to -item B-.
-- Align the mark -C- on the seal to the center roof frame seal hole and attach.
-- Attach the left and right seal downward through -item B-.
-- Press the seal on the entire length.
