Drip Rail, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Open the engine compartment lid.

-- Carefully warm the drip rail -1- using a :VAG1416  .

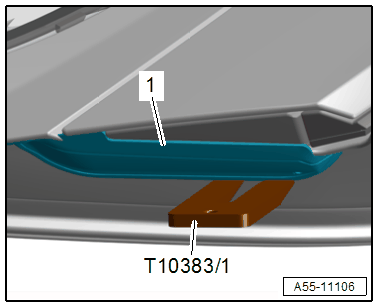

GWWA55-11106Courtesy of AUDI OF AMERICA, LLC

-- Using with the Wedge :T10383/1  , pry up the drip rail -1- from the rear lid while carefully loosening the bonding.
