Adjusting Buffer, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

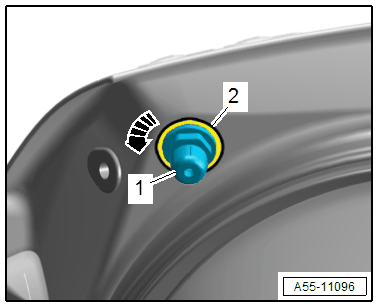

-- Turn the adjusting buffer -1- counter-clockwise -arrow- and remove it from the opening in the body.

GWWA55-11096Courtesy of AUDI OF AMERICA, LLC
