Adjusting Buffer Stop, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.

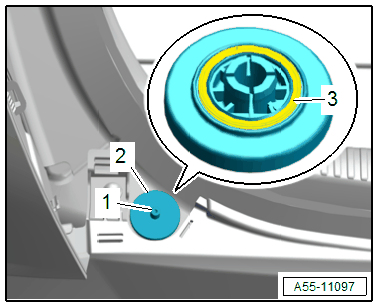

-- Push through the cotter pin -1- and remove the stop -2-. At the same time the cotter pin falls behind the luggage compartment side trim panel.
-- Push the lower luggage compartment side trim panel slightly to the side and remove the cotter pin. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .
