Latch Release Lever Release Cable, Removing And Installing: Removing

-- Remove the latch release lever mounting bracket. Refer to LATCH RELEASE LEVER MOUNTING BRACKET, REMOVING AND INSTALLING .

-- Remove the vehicle electrical system control module bracket. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

TT/TTS:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 3-.

-- Release the catch in direction of -arrow- and remove the cover -2-.

-- Free up the coolant hose -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrows- and remove the air duct upper section -1-.

-- Remove the left and right bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip and remove the lower section -1- of the air duct.

TTRS:

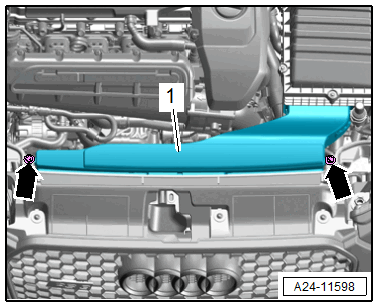

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers in direction of -arrows- and remove the housing cover -1-.

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -2-.

-- Free up the release cable at the lock carrier and the body.

-- Remove the grommet and remove the release cable outward.
