Mounting Bracket With Hook Release Lever Release Cable, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the hook release lever. Refer to HOOK RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the lock carrier cover. Refer to LOCK CARRIER COVER, REMOVING AND INSTALLING .
-- Remove the latch and disengage the mounting bracket release cable. Refer to LATCH, REMOVING AND INSTALLING .

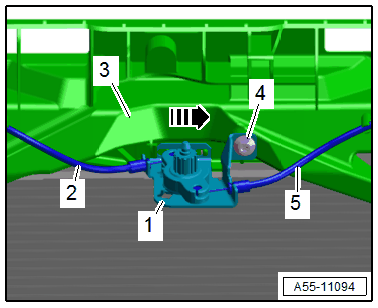

-- Remove the bolt -4-.
-- Slide the mounting bracket -1- in the direction of the -arrow- and remove.
-- Free up the release cables -2 and 5- and guide them out of the lock carrier -3-.
