Latch, Removing And Installing: Removing

TT/TTS:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 3-.

-- Release the catch in direction of -arrow- and remove the cover -2-.

-- Free up the coolant hose -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the catches -arrows- and remove the air duct upper section -1-.

-- Remove the left and right bolt -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip and remove the lower section -1- of the air duct.

TTRS:

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and air duct -1-.

Continuation:

Courtesy of AUDI OF AMERICA, LLC

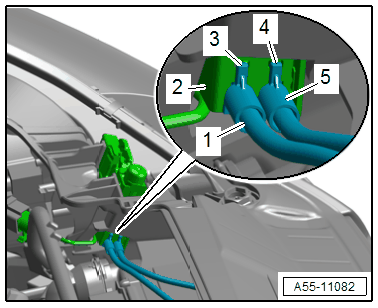

-- Release the catch -3- and slide the cable bracket -1- for the latch release cable downward out of the mount -2-.

-- Release the catch -4- and slide the cable bracket -5- for the hook release cable downward out of the mount.

-- Disconnect the connector -2-.

Courtesy of AUDI OF AMERICA, LLC

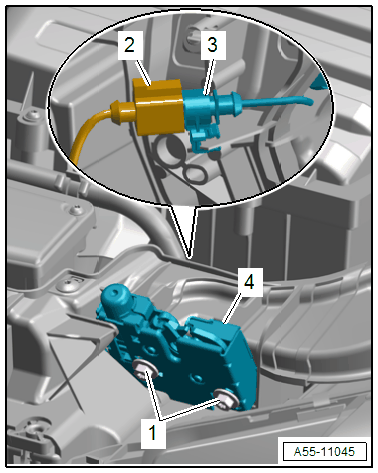

-- Free up the connector -3-.

-- Remove the bolts -1-.

-- Remove the latch -4- until both the cables are visible.

-- Press the hook -3- on the latch into the "unlocked" position -arrow- and hold.

Courtesy of AUDI OF AMERICA, LLC

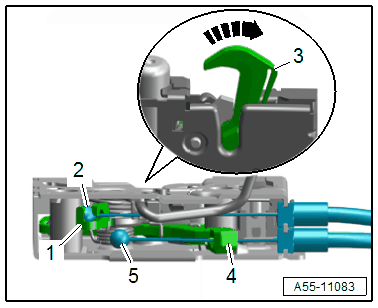

-- Guide the cable nipple -5- out of the release lever -4- at the same time.

-- Guide the cable nipple -2- out of the release lever -1- to release the latch.

-- Remove the latch.
