Latch Release Lever Mounting Bracket, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the latch release lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the lower A-pillar trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

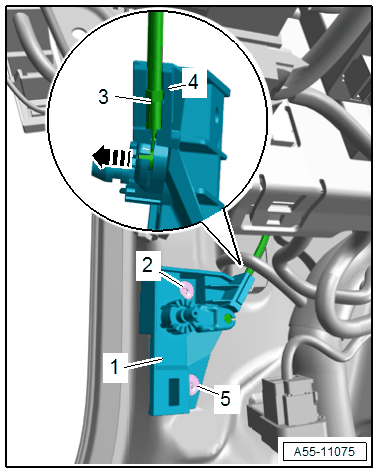

-- Remove the bolts -2 and 5-.
-- Remove the mounting bracket -1-.
-- Loosen the release cable -3- from the support bracket -4- and disengage the release cable nipple in direction of -arrow-.
