Front Impact Guard, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

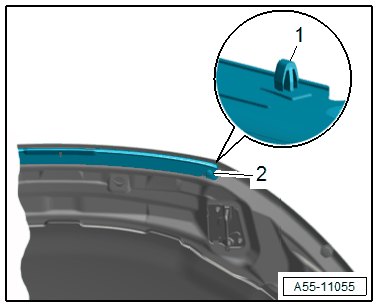

-- Release the catch -1- and remove the front impact guard -2-.

GWWA55-11055Courtesy of AUDI OF AMERICA, LLC
