Hook Release Lever, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

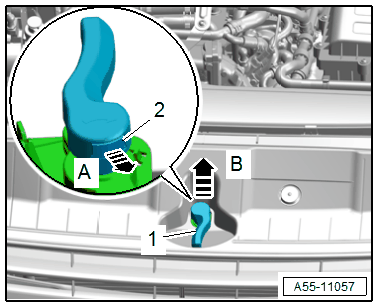

Version 1:

Courtesy of AUDI OF AMERICA, LLC

-- Pull the clip -2- out of the release lever -1- slightly in direction of -arrow A- using a small screwdriver.

-- Remove the release lever upward in direction of -arrow B-.

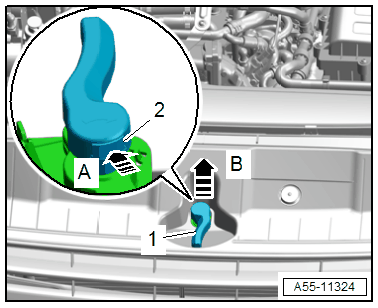

Version 2:

Courtesy of AUDI OF AMERICA, LLC

-- Push the clamp -2- inward in direction of -arrow A- and at the same time remove the operating lever -1- upward in direction of -arrow B-.
