Hood, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
- To complete the procedure, a second technician is required to be at the following position found here: HOOD, REMOVING AND INSTALLING => nuts .
CAUTION:
Risk of damaging the hood by opening when the pedestrian protection is triggered
- Only open the hood after the triggered pedestrian protection has been reset.
- Deployed pedestrian protection: hinge reset. Refer to HINGE, RESETTING .
-- Remove the washer nozzles. Refer to SPRAY NOZZLES, REMOVING AND INSTALLING .

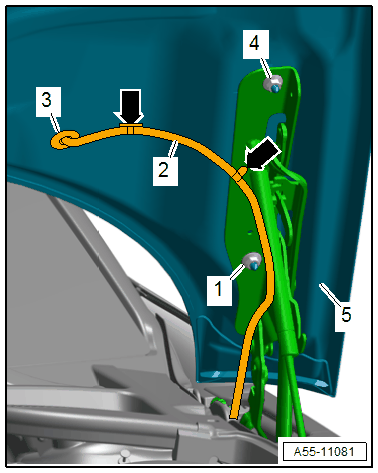

-- Remove the grommet -3-.
-- Guide the wiring harness/washer fluid hose -2- out of the hood and free it up -arrows-.
-- Remove the nuts -1 and 4- from the hinge.
-- Remove the hood -5-.
Installing
Install in reverse order of removal and note the following:
-- Adjust the hood. Refer to HOOD, ADJUSTING .
Tightening Specifications
- Refer to OVERVIEW - HOOD
