Side and Length Adjustment at Hinge:
WARNING: This page is about a different variant/trim than selected.

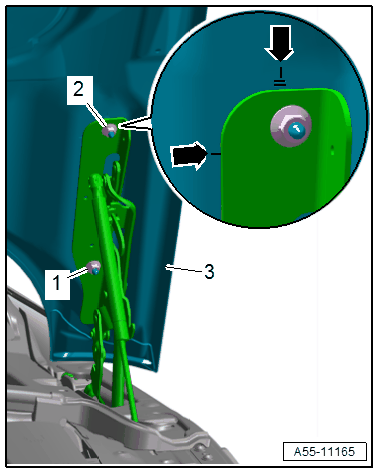

-- Loosen the nuts -1 and 2-.
-- Align the hood -3- sideways and lengthwise according to the marks -arrows-.
-- Tighten the nuts.
Tightening Specifications
- Refer to OVERVIEW - HOOD
