Height Adjustment at Hinge:

WARNING: This page is about a different variant/trim than selected.

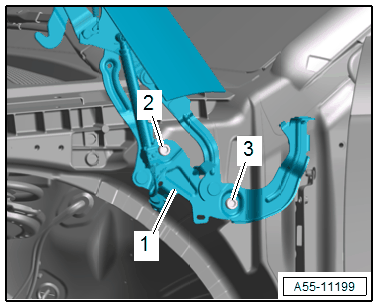

GWWA55-11199Courtesy of AUDI OF AMERICA, LLC

-- Loosen bolts -2 and 3-.

-- Adjust the height of the hinge -1-.

-- Tighten the bolts.

Tightening Specifications
