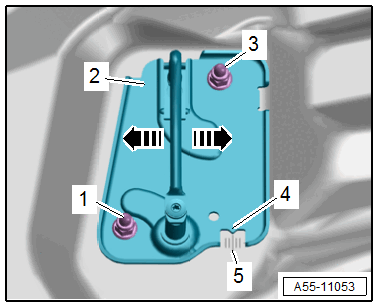

Side Adjustment at Striker:

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the nuts -1 and 3-.

-- Move the striker -2-.

• Use the markings on the striker -4- and on the body -5- for the side adjustment.
• During the closing test, the lid must fall from the balance position into the latch and engage completely.

-- Tighten the nuts to the tightening specification.

Tightening Specifications

• Refer to OVERVIEW - HOOD
