Height Adjustment at Striker:
WARNING: This page is about a different variant/trim than selected.
-- Install the adjusting buffer completely. Refer to HEIGHT, ADJUSTING USING ADJUSTING BUFFER .

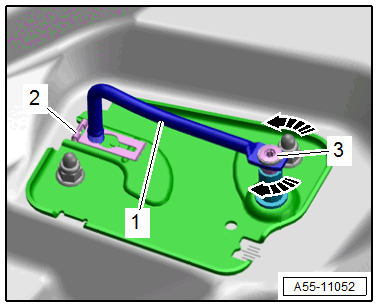

-- Loosen the clip -2- by removing.
-- Adjust the striker -1- by turning the adjusting screw -3- -arrows-.
- During the closing test, the lid must fall from the balance position into the latch and engage completely.
-- Adjust the striker height if necessary.
-- Push the clip back on the striker.
