Gas-Filled Strut, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Support the hood with the :VAS501 003 .

-- Using a small screwdriver, lift the locking spring -1- slightly -arrow- and remove the gas-filled strut -2- from the ball pin.

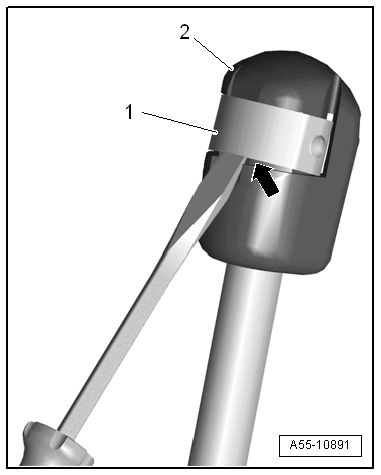

Fig 1: Lifting Locking Spring Using Small Screwdriver

Courtesy of AUDI OF AMERICA, LLC
