Fuel Filler Door Trim, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal and note the following:

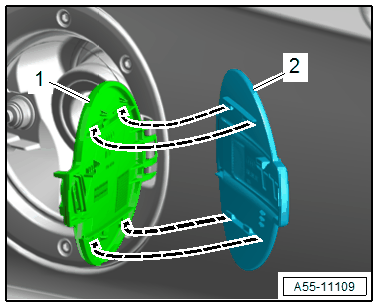

-- The guides on the trim -2- must be positioned behind the mounts -arrows- when placing on the fuel filler door unit -1-.
 Courtesy of AUDI OF AMERICA, LLC
|
-- Slide the trim forward until the clips audibly engage.
