Sill Panel, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

Courtesy of AUDI OF AMERICA, LLC

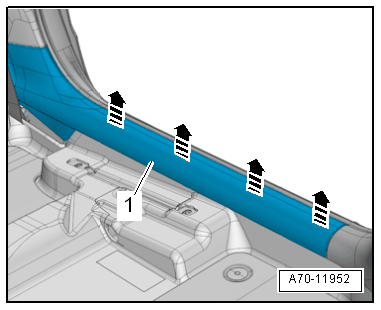

-- Free up the sill panel in the area of the door seal.

-- Unclip the front of the sill panel strip -1- using the : T10383 beginning from the side sill in direction of -arrows-.

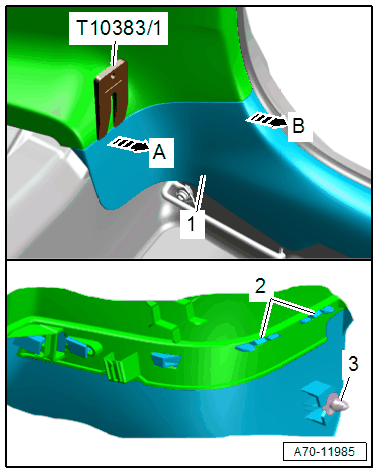

-- Release the tabs -2- and the sill panel clip -3- with the : T10383/1 in direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The sill panel for the TT Coupe is illustrated.

-- Remove the sill panel -1- forward from the side trim panel in direction of -arrow B-.

-- Remove the sill panel.
