Side Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .
-- Remove the bench seat / single seats. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

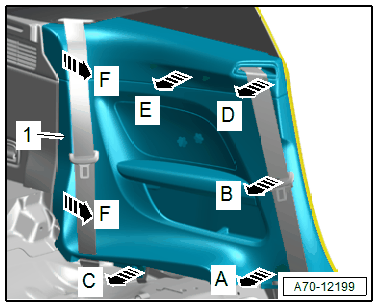

-- Starting at the bottom unclip the side trim panel -1- from the body in direction of -arrows A through E-.
-- Remove the side trim panel forward from the mount and the luggage compartment side trim panel in direction of -F arrows-.
NOTE:
To replace the side trim panel remove the front belt anchor. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING .
