Rollover Protection Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear panel cover with the belt webbing threaded through and move it to the side. Refer to REAR PANEL COVER, REMOVING AND INSTALLING .

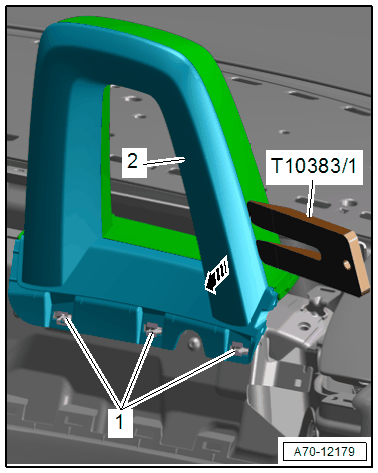

-- Remove the clip -1- from the rollover protection trim panel.
-- Beginning from the bottom, unclip the front trim panel -2- with the : T10383/1 from the rear trim panel in direction of -arrow-.

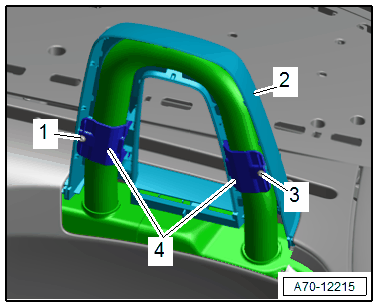

-- Remove the bolts -1 and 3-.
-- Unclip the bracket -4- from the trim panel and remove it.
-- Remove the trim panel -2- from the rollover protection.
