Overview - Windshield Frame Trim Panel

WARNING: This page is about a different variant/trim than selected.

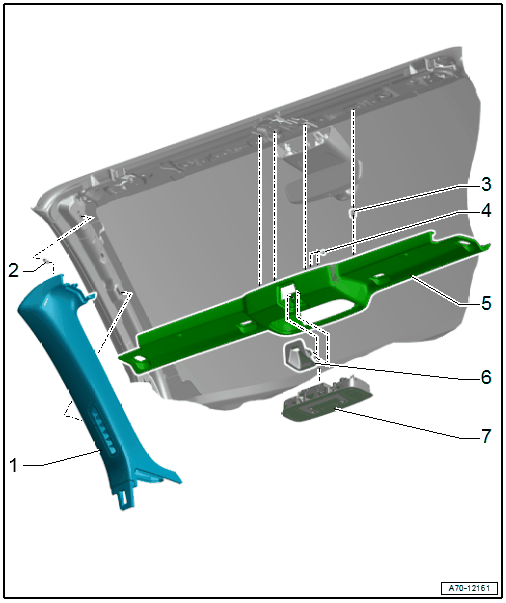

Fig 1: Exploded View Of Windshield Frame Trim Panel

Courtesy of AUDI OF AMERICA, LLC

A-Pillar Upper Trim Panel
- Removing and installing. Refer to A-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING, TT ROADSTER .
- Press on until it engages audibly
- Stretch the window seal lip over
Clip
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Quantity: 2
Clip
- Insert in the trim panel
- Remove the clips that are still in the mounting points on the body using the Omega Clip Tool: T40280 .
- Quantity: 4
Bolt
- 0.9 Nm
- Quantity: 2
Windshield Frame Trim Panel
- Removing and installing. Refer to WINDSHIELD FRAME TRIM PANEL, REMOVING AND INSTALLING .
- Press on until it engages audibly
- Stretch the window seal lip over
Insert
- For the convertible top lock
- Removing and installing. Refer to WINDSHIELD FRAME TRIM PANEL, REMOVING AND INSTALLING .
Roof Module
- Removing and installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
