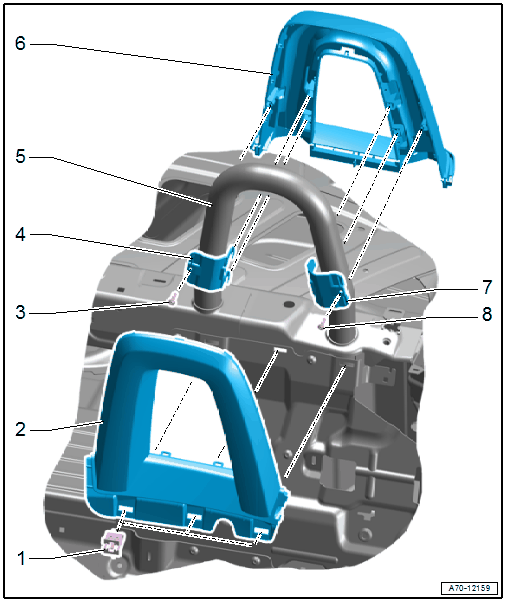

Overview - Rollover Protection Trim Panel
WARNING: This page is about a different variant/trim than selected.
- Clip
- Replace damaged or deformed clips
- Press in the rollover protection trim panel opening and the body
- Quantity: 3
- Front Rollover Protection Trim Panel
- Replace after removing
- Removing and installing. Refer to ROLLOVER PROTECTION TRIM PANEL, REMOVING AND INSTALLING .
- Cannot be removed without destroying
- Bolt
- 1.5 Nm
- Rollover Protection Trim Panel Bracket
- Rollover Protection
- Rear Rollover Protection Trim Panel
- Removing and installing. Refer to ROLLOVER PROTECTION TRIM PANEL, REMOVING AND INSTALLING .
- Rollover Protection Trim Panel Bracket
- Bolt
- 1.5 Nm
