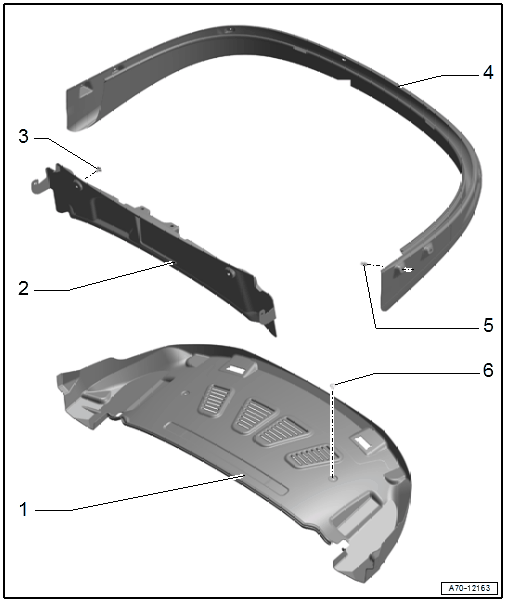

Overview - Convertible Top Compartment Trim Panel
WARNING: This page is about a different variant/trim than selected.
- Lower Convertible Top Compartment Trim Panel
- Removing and installing. Refer to CONVERTIBLE TOP COMPARTMENT TRIM PANEL, REMOVING AND INSTALLING .
- Convertible Top Compartment Front Trim Panel
- Removing and installing. Refer to FRONT CONVERTIBLE TOP COMPARTMENT TRIM, REMOVING AND INSTALLING .
- Expanding Clip
- Remove using the Clip Pliers: T40172A
- Quantity: 6
- Convertible Top Compartment Rear Trim Panel
- Removing and installing. Refer to the appropriate Service Information .
- Expanding Clip
- Remove using the Clip Pliers: T40172A
- Quantity: 8
- Expanding Clip
- Remove using the Clip Pliers: T40172A
- Quantity: 2
