Footrest, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the lower A-pillar trim panel on the driver side. Refer to A-PILLAR LOWER TRIM PANEL, REMOVING AND INSTALLING .

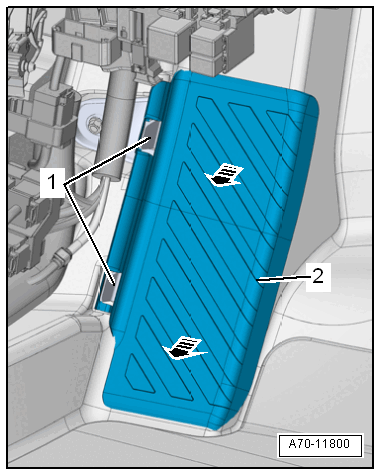

-- Release the catches -1-, disengage the footrest -2- from the bracket and remove in direction of -arrows-.
-- Push aside the carpet in the area of the threaded connections and remove the nuts in direction of -arrows-.

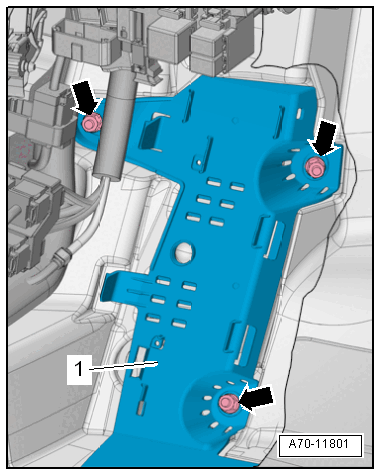

-- Remove the bracket -1- from the threaded pins and remove under the carpet.
