Roof Reinforcement, Attaching To Body
WARNING: This page is about a different variant/trim than selected.
Special tools and workshop equipment required
- Assembly Adhesive. Refer to the Parts Information.
Procedure
-- Remove the headliner. Refer to HEADLINER, REMOVING AND INSTALLING .

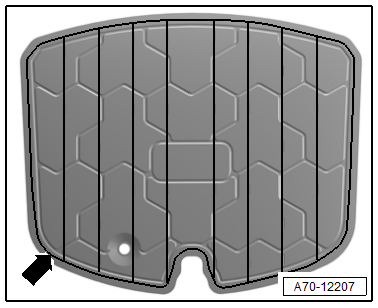

-- Apply adhesive beads -arrow- to the roof reinforcement as shown.
- Adhesive bead thickness: approximately 8 mm
- Apply the beads of adhesive according to the line markings on the roof reinforcement.
-- Mount the roof reinforcement -2- centered between the outer sides and at a distance -a- from the bow -1- on the roof.
- Dimension -a- = 16 mm.
-- Press the roof reinforcement on the roof surface.
-- Wipe off any adhesive.
Install in reverse order of removal.
