Rear Luggage Compartment Floor Handle, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Remove the luggage compartment floor.

-- Release the mounting bracket -1- from the underside of the luggage compartment floor.

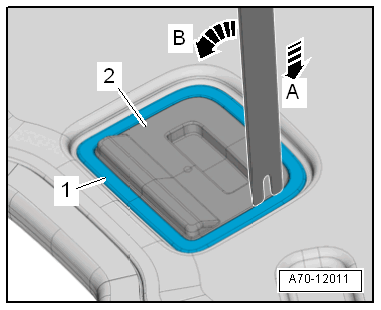

Fig 1: Removing Luggage Compartment Floor Panel Handle

Courtesy of AUDI OF AMERICA, LLC

-- To do this position the : 80-200 in direction of -arrow A-, and release the frame in direction of -arrow B-.

-- Release the frame and remove the luggage compartment floor panel handle -2-.
