Rear Lid Upper Trim Panel, Removing And Installing: Removing
WARNING: This page is about a different variant/trim than selected.
-- Remove the rear lid lower trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

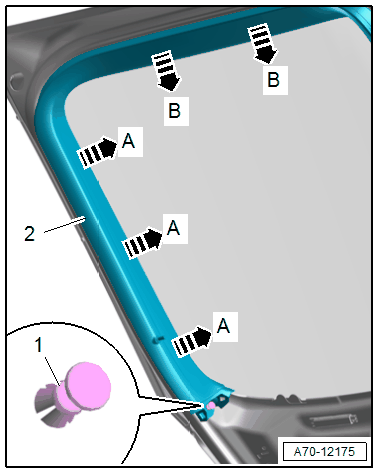

-- Remove the expanding clip -1- on the left and right side of the rear lid with the : T40172A .
-- Unclip the trim panel -2- from the lower sides of the rear lid in direction of -A arrows- using the : 80-200 .
-- Then unclip the trim panel using the : 80-200 from the top of the rear lid in direction of -B arrows- and remove.
