Rear Lid Trim Panel, Removing And Installing, TT Roadster: Removing

-- Remove the rear lid latch trim panel -1- using the : T40233  in the direction of the -arrow-.

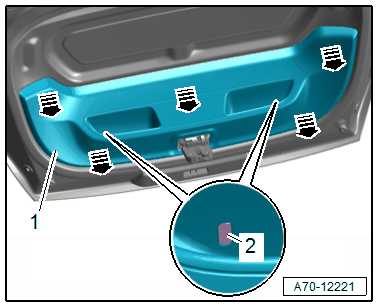

Fig 1: Identifying Rear Lid Lock Trim -1- In Direction Of -Arrow-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Carefully push in the expanding pin -2- approximately 5 mm with a screwdriver (do not push in all the way, otherwise the expanding pin falls)

-- Unclip the rear lid trim panel -1- with the : T10383  from the rear lid in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC
