Rear Lid Lower Trim Panel, Removing And Installing, TT Coupe: Removing

Fig 1: Identifying Rear Lid Lock Trim -1- In Direction Of -Arrow-, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid latch trim panel -1- using the : T40233  in the direction of the -arrow-.

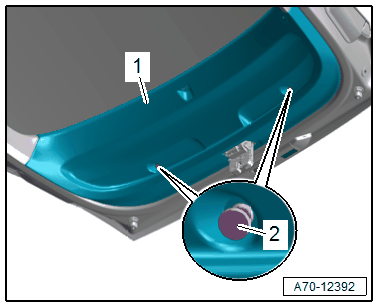

-- To remove the expanding clip, remove the clamping pin -1- in the expanding clip with the : T40172C  with Adapter: T40172/2A  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the released expanding clip.

-- Repeat the process on the opposite side.

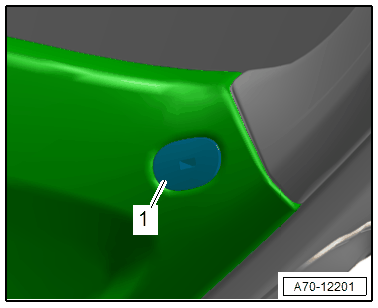

-- Unclip the emergency release cover -1- from the rear lid trim panel.

Courtesy of AUDI OF AMERICA, LLC

-- Guide out the emergency release cover from the rear lid trim panel.

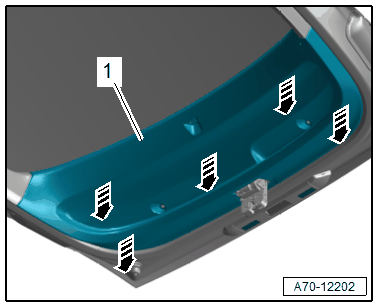

-- Unclip the rear lid trim panel -1- with the : T10383  from the rear lid in direction of -arrows-.

Courtesy of AUDI OF AMERICA, LLC
